Webhook Documentation

Setting Up a Webhook

Webhooks allow you to receive real-time updates from DashX. Follow these steps to set up a webhook.

How to Create a Webhook

  1. Go to the DashX Dashboard.
  2. Login with your DashX account.
  3. Navigate to Webhook in the sidebar menu.

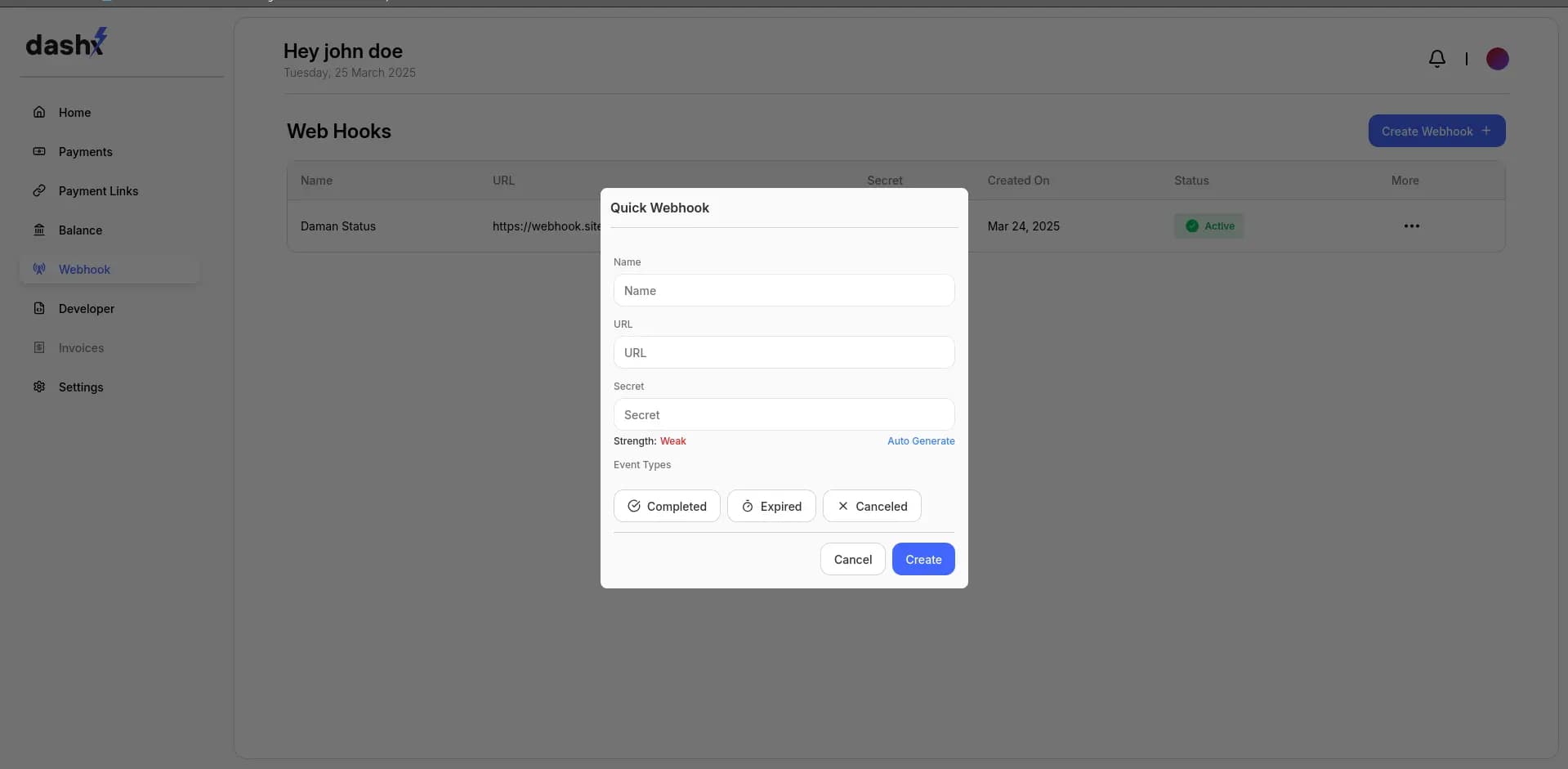

  4. Click the Create Webhook button on the top-right.

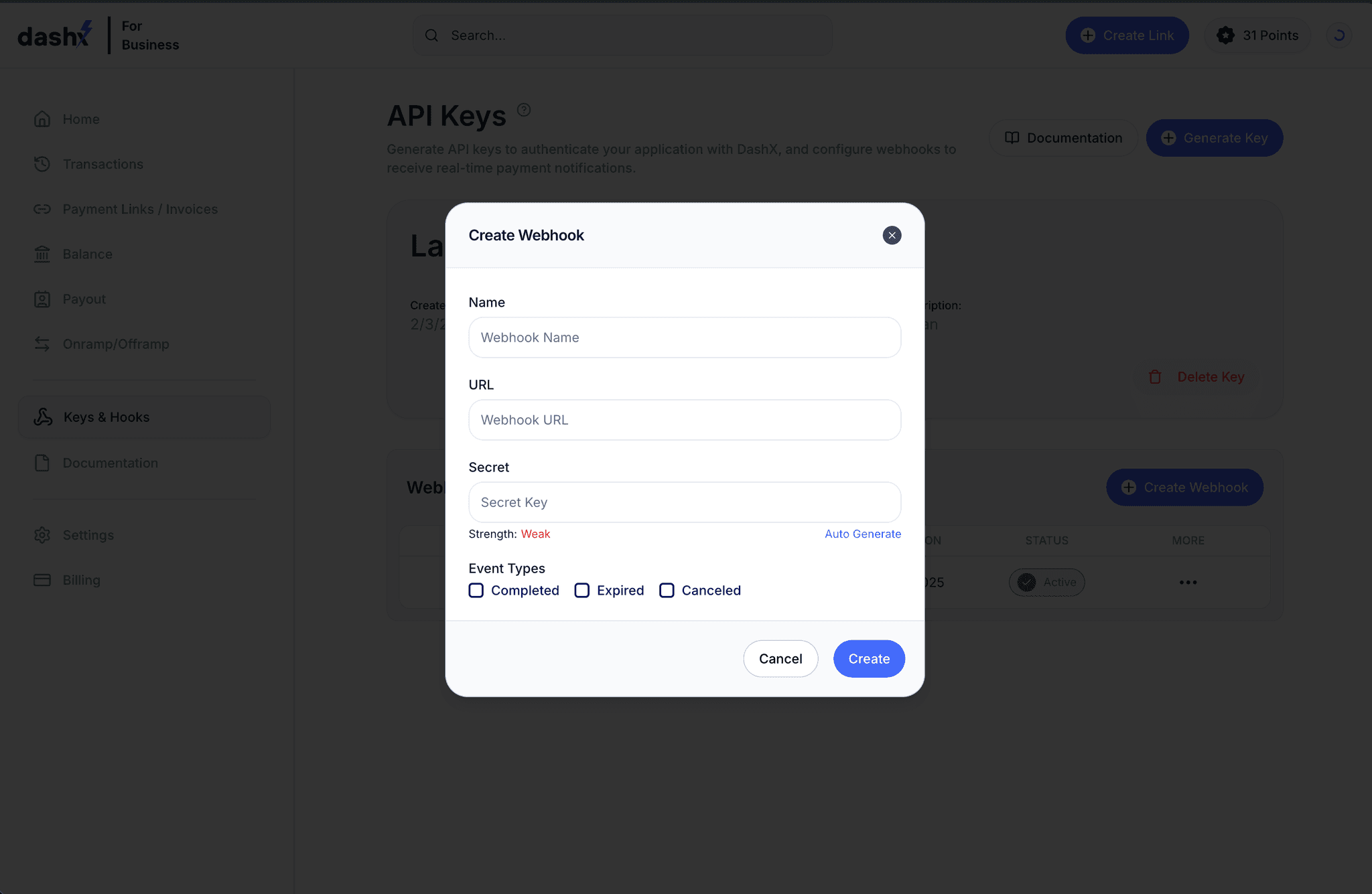

  5. Webhook Setup Guide
  6. Enter the Endpoint URL and a brief description, then click Create.
  7. Once added, hover over the endpoint and click Send Test Event to verify the webhook.
  8. For security, a Webhook Secret Key is generated. Store it securely as it will only be shown once.

Usage of Webhook

Webhooks allow you to receive real-time updates about checkout sessions and other events. Once a webhook is configured, your server will receive structured JSON payloads whenever an event occurs.

Response from Webhook

  • When a checkout session is completed, your webhook URL will receive a POST request with a payload similar to this:


    {
      "id": "d011c41f-a29f-4c44-b3de-64e234d8b269",
      "apiVersion": "2023-01-11",
      "created": 1742839610947,
      "object": "checkoutSession",
      "type": "checkout_session.completed",
      "data":  {
        "object": {
          "id": "e0cbb984-fc53-4e38-8167-1f5f7a5d0a3c",
          "createdAt": "2025-03-24T18:06:45.053334Z",
          "amountTotal": "0.10056800",
          "currency": "USDC",
          "status": "SUCCESS",
          "customer_id": "6881540b-2c2c-45",
          "transaction_hash": "0x0e09b6fbcc79af96d192baede7d8cda9829fa3df0a01276d6d509cf9edfcb344",
          "payment_link_id": "516089da-904f-4588-8a5e-53f31adeda1b",
          "payment_link_title": "Fee check",
          "from_address": "0xf70da97812cb96acdf810712aa562db8dfa3dbef",
          "updatedAt": "2025-03-24T18:06:50.947368+00:00"
        }
      }
    }
  • When a checkout session is expired, your webhook URL will receive a POST request with a payload similar to this:


    {
      "id": "d011c41f-a29f-4c44-b3de-64e234d8b269",
      "apiVersion": "2023-01-11",
      "created": 1742839610947,
      "object": "checkoutSession",
      "type": "checkout_session.expired",
      "data": null
    }
  • When a checkout session is canceled, your webhook URL will receive a POST request with a payload similar to this:


    {
      "id": "d011c41f-a29f-4c44-b3de-64e234d8b269",
      "apiVersion": "2023-01-11",
      "created": 1742839610947,
      "object": "checkoutSession",
      "type": "checkout_session.canceled",
      "data":null
    }

Handling Webhooks in Your Application

Webhooks allow your server to listen for real-time payment events. When a checkout session is completed, your webhook URL will receive a POST request containing transaction details. Below are examples of how to handle webhook events in Python and JavaScript.

🔹 Python Example (Flask)

from flask import Flask, request, jsonify

app = Flask(__name__)

@app.route('/webhook', methods=['POST'])
def webhook():
    data = request.json
    if data["type"] == "checkout_session.completed":
        print("Payment successful:", data["data"]["object"])
    return jsonify({"status": "received"}), 200

if __name__ == '__main__':
    app.run(port=5000)

🔹 JavaScript Example (Express.js)

const express = require("express");
const app = express();

app.use(express.json());

app.post("/webhook", (req, res) => {
  const data = req.body;
  if (data.type === "checkout_session.completed") {
    console.log("Payment successful:", data.data.object);
  }
  res.json({ status: "received" });
});

app.listen(5000, () => console.log("Webhook server running on port 5000"));

Note: Only 5 webhooks are allowed per merchant
